Test Results

Art.–Nr. PEN-XW-14

Pentax XW 14mm

Sharpness:

Perfect in the center area. Towards the edges still very good.

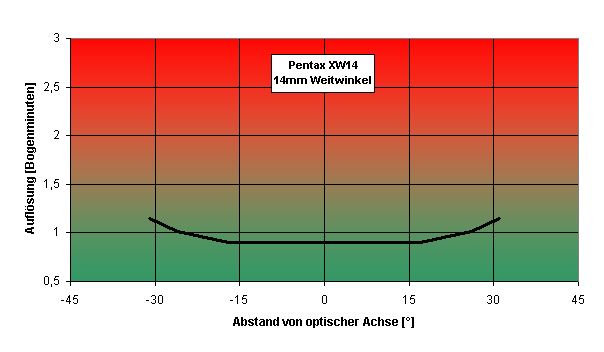

x-axis: distance from optical axis in °, y-axis: resolution in arc minutes

Apparent Field of View:

The measured apparent field of view is approx. 67°, close to the 70° given by Pentax.

Contrast:

Very good contrast.

Aberration:

Nothing noticeable.

Eye Relief:

Comfortable at 20mm eye relief.

Mechanical Quality:

That’s nothing we have to report on earnestly for Pentax eyepieces. Look e.g. at the perfect grip coated body, use of high quality materials etc. The cap at the eye lens is removable and releases a thread (43x0.75mm), which can be used for fixation of accessories.

Summary:

Really a nice wide angle eyepiece. It is a “classic” design, which means that contrary to the Nagler design the distortion is kept at a minimum.
