Test Results



Art. –Nr. SKY-SP-10

Skywatcher Super Ploessl 10mm



Sharpness:

Sharpness is very good within 30° apparent field of view. Only close to the edges a little bit blurred.

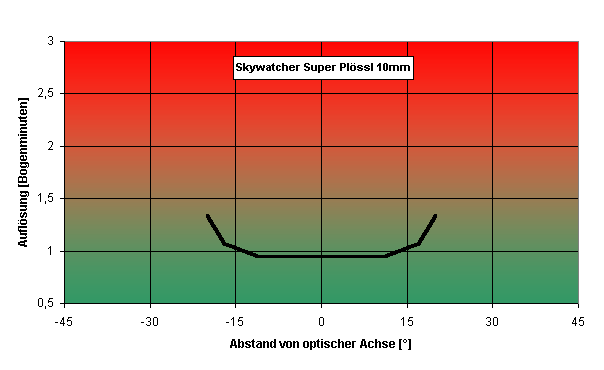

x-axis: distance from optical axis in °, y-axis: resolution in arc minutes



Apparent Field of View:

Field of view is approx. 44°.



Contrast:

Due to the multi coating and use of just four lenses a very good contrast.



Aberration:

Nothing noticeable.



Eye Relief:

Still short eye relief because of the short focal length. To have a view of the whole apparent field of view you have to get close to the lens.



Mechanical Quality:

Fine. You do not need more to keep it for a long time.



Summary:

A very good eyepiece. Recommendable.
